Description

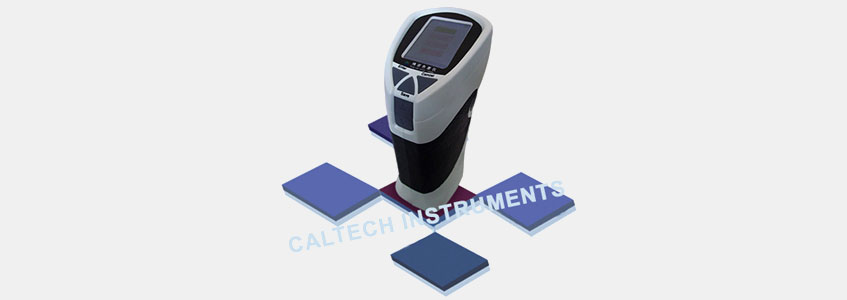

BGD 553 and BGD 554 Precise Colorimeter is the second generation product of BGD 552.Developed by Biuged , it is advanced and perfect colorimeter which has the highest price-performance ration product among domestic similar products.
This meter is produced strictly according to relative CIE standards and can measure the color difference value between different color, L*a*b* value, and includes a professional data processing software. With this software, operator can control the meter to measure the sample by computer, and let the data be shown as many types mode and pictures. And also can download the data to office software. Moreover, the software can offer data management, analysis and evaluation mode, can give many helps to your research and development or quality control.
It is used to do color measurement, including paint, plastic, rubber, textile printing, print, car and paper making field. It can be used alone, and also to do color quality control together with computer.
Features:
- Pass the verification issued by the third national institute，with highest price-performance ratio products among similar products
- Including standard black board for calibration, ensure accuracy for every measurement
- Can establish the L*a*b* value of standard sample by hand
- Can test whiteness and yellowness
- With PC Software，computer manage data’s
- With USB、Blue teeth connection and output
- Measurement repeatability: △E is within 0.08
- Big capacity for data memory，can test average value of many places
- BGD 554 can test powder and jelly
Technical Parameters:
| Ordering Information Parameters ↓ |
BGD 553 Precision Colorimeter |
BGD 554 Precision Colorimeter |
| Illumination （View System） |
8/d（8° Viewing angle/diffused illumination）， equipped with Simultaneous measurement of SCI（specular component included） |
8/d（8° Viewing angle/diffused illumination）， equipped with Simultaneous measurement of SCE（specular component excluded） |
| Color Space | Chromaticity Value：L*a*b*, L*C*h, ΔE*ab, XYZ, RGB Value; Color difference Value：Δ( L*a*b*),Δ(L*C*h); Whiteness Value：Hunter Whiteness，Ganz Whiteness; Yellowness：YI. |
|
| Illumination Area | Approx. Φ8mm | |
| Observer | CIE 10° Standard Observer；CIE D65 Light source; | |
| Range | L*:1～100 | |
| Repeatability | Standard deviation ∆E*ab≤ 0.1 （Test the standard white board for 30 times to get the average value） |
Standard deviation ∆E*ab≤ 0.08 （Test the standard white board for 30 times to get the average value） |
| Data Storage | 100 groups standard samples，and it can keep 100 groups of sample values under every standard sample | |
| Measurement Time | Approx. 0.5 second | |
| Light Source | Halogen Lamp | |
| Language | Chinese and English | |
| Power | 4 pcs alkaline batteries or nickel batteries & special adapter（DC：5v） | |
| Interface | USB 2.0 , Printer | |
| Weight | 550g | |
| Size | 77*86*210mm | |
