Description

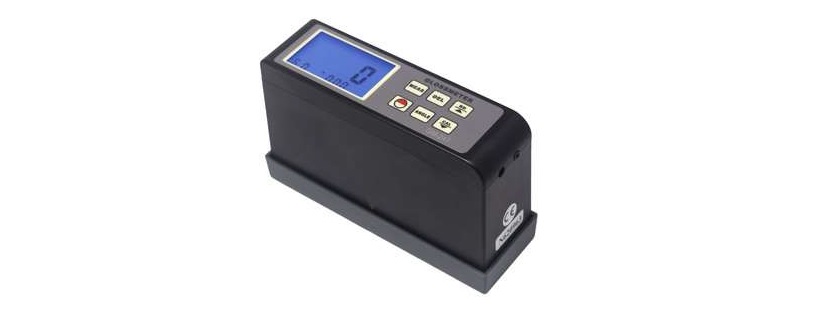

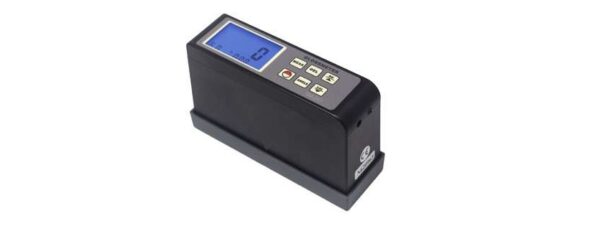

Caltech Engineering Services India offers Gloss Meter (Integral Type) CES-407.
Gloss Meter CES-407 have different kinds of measurement angles 20°/ 45°/ 75°. Generally, 20° Degree applies to High Gloss Materials, 60° Degree applies to Medium Gloss Materials, 85° Degree applies to Low Gloss Materials. Two additional angles are used for other materials. An angle of 45° Degree is specified for the measurement of ceramics, films, textiles and anodized aluminum, whilst 75° Degree is specified for paper and printed materials.
Features:
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitiveness.
* Automatic calibration. Small in size, easy to carry.
* Intelligent design, rapid measurements.
* Able to store 254 groups of measurements.
* Optional – Applies USB,Bluetooth data output.
* Built-in lithium ion rechargeable battery.
* Backlight display, suitable for low light environment.
Specifications:
| Model | CES-407 |
| Display | 4 Digital Backlight LCD |
| Measuring Angle | 20°/ 45°/ 75° |
| Range | 0.1 to 200 Gloss Units |
| Gloss Unit | GU |
| Accuracy | ±1.5GU against reference standard JJG 696-2002 |
| Resolution | 0.1 |
| Repeatability | ±0.5GU |
| Measuring Area | 7x14mm (Ellipse) |
| Data Memorized | 254 Groups |
| Operating Conditions | Temp. 0~40°C Humidity: <85%RH |
| Power Supply | 3.7 V Lithium Ion Rechargeable Battery |
| Dimensions | 140 x 45 x 75 mm |
| Weight | 305 g Including Batteries |
It is equivalent to Novo-Gloss 45 Glossmeter.
