Description

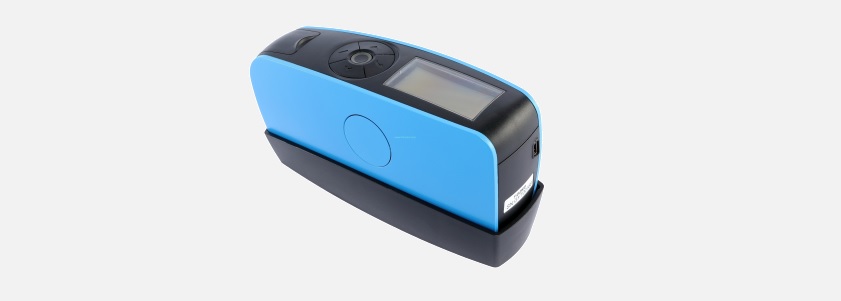

Caltech India offers YG60 60° Precise Gloss Meter. Gloss is an important aspect of our visual perception of objects. The perception of gloss can relate to a product’s finish, texture and how a sample is illuminated and viewed. Surfaces with high reflectance are perceived as glossy, shiny or lustrous, whilst less reflective surfaces are perceived as semi-gloss or matt. Gloss can be measured by several different techniques. One of them is by using an optical instrument called a gloss meter. A glossmeter provides quantifiable gloss measurements, expressed as gloss units (GU).
YG series gloss meter is independently developed with intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.
YG60 60° Precise Gloss Meter test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.
Product Features:
1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.
Applications:
The gloss meter is used in many industries from paper mills to automotive and are used by the producer and the user alike.
Examples include:
Paints & Coatings, Powder Coatings, Additives, Inks, Plastics, Paints, Coating, Plastics, Ink, Rubber, Printing, Paper, Glass, Handware, Ceramic, Marble, Wood Coatings, Polishes And Flooring, Yacht Manufacture, Automotive Manufacture And Re-Finis, Aerospace, Polished Stone And Metals, Consumer Electronics, Anodized Metals
Ordering Information:
Caltech Engineering Services offer a comprehensive range of single, dual & triple angle glossmeters and DOI meters, which provide Gloss, % Reflectance and Haze measurements on a wide range of surfaces.
The YG Series Gloss Meter is available as either a simple entry level 60° gloss meter or state of the art Single, Dual or Triple Angle Glossmeter with % Reflectance and Haze measurement capability.
| YG Series Specification Parameter | |||
| Model | YG60S 60° Economic Gloss Meter | YG60 60° Accurate Gloss Meter | YG268 Tri-angle Gloss Meter |
| Measuring Angle | 60° | 60° | 20° 60°85° |
| Measuring Range | 60°: 0-200GU | 60°: 0-1000GU | 20°: 0-2000GU |
| 60°: 0-1000GU | |||
| 85°: 0-160GU | |||
| Measuring Area | 60°: 9x15mm | 20°: 9×10mm, 60°: 9x15mm, 85°: 5×38mm | |
| Division Value | 1GU | 0.1GU | |
| Measuring Modes | Basic mode | Basic mode; Statistic mode; Continuous mode; QC mode | |
| Measuring Time | 0.5S | ||
| Repeatability | 0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU | 0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU |
| Accurate | Conform with JJG696 second grade requirements of gloss meter | Conform with JJG696 first grade requirements of gloss meter | |
| Auto Power-off Time | 30s | Within 30s-120s | |
| Long-time Calibration | / | Automatically check and made the calibration | |
| Language | Chinese & English | ||
| Storage | / | 35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000) | |
| Display | 2.3 inch white and black screen | ||
| Size | 160*52*84mm | ||
| Weight | About 300g | ||
| Power Supply | 1pc dry-cell battery(can measure 10000 times) or use USB Charge | ||
| Interface | USB | USB & Bluetooth 2.1 version | |
| PC Software | / | GQC6 QC software can printing testing report and with more extended functions | |
| Operation Temperature Range | 0-40℃（32-104° F） | ||
| Storage Temperature Range | -20-50℃（-4-122° F） | ||
| Humidity Range | < 85% RH, without condensation | ||
| Standard Accessories | User manual, calibration plate | USB cable, user manual, calibration plate, QC software | |
| Optional Accessories | Miniature printer | ||
| Notification: the technical parameter is only for reference | |||
