Description

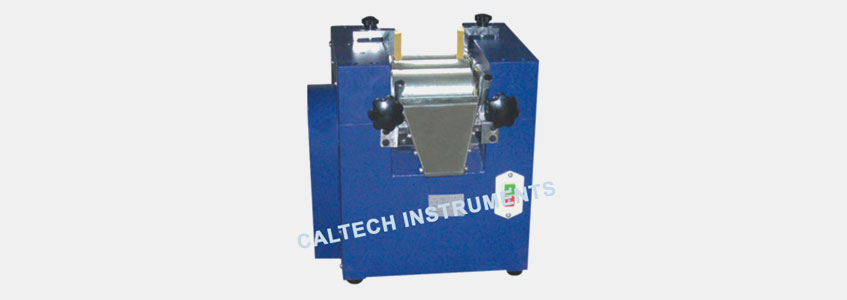

BGD 770 series Three roller grinder is widely used in paste materials including inks, Paint, Pigment, Soap, Artificial leather, Plastics, Lubricant grease, Chocolate and so on. Especially for high viscosity and fineness material. The mill roller is made of high hardness alloy and anti abrade, also equipped with cooling device for continuous operation.
Main Technical Parameters:
| Ordering Information | BGD 770/1 | BGD 770/2 | BGD 770/3 | BGD 770/4 | BGD 770/5 | |
| Roller diameter(mm) | 65 | 100 | 150 | 200 | 260 | |
| Working length(mm) | 125 | 250 | 300 | 500 | 675 | |
| Speed (r.p.m) | Slow | 26 | 28 | 34 | 19 | 23 |
| Middle | 70 | 66 | 78 | 55 | 64 | |
| Fast | 145 | 152 | 181 | 155 | 183 | |
| Motor Power (KW) | 0.75 | 1.5 | 2.2 | 4.0 | 7.5 | |
| Capacity (L) | 5 | 30 | 60 | 100 | 150 | |
| Overall size (mm) | 410x400x450 | 680x600x700 | 830x830x930 | 1180x1120x980 | 1680x1320x1150 | |
| Weight (kg) | 80 | 300 | 500 | 800 | 2100 | |
