Description

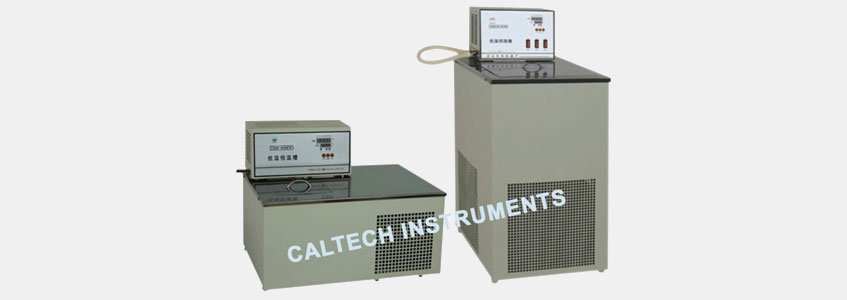

THD series Low Temperature Thermostatic Bath is widely used in the fields of biological engineering, medicine, food, chemical industry, chemical analysis, petroleum, etc, providing a constant high precise, controlled, temperature homogeneous place for users. Its temperature is controlled by microprocessor with PID regulator. It has such advantages as fastness in temperature rising and dropping, high precision in controlling temperature.
Main Technical Parameters:
| Technical Item→ Ordering Information ↓ |
Range of Temperature (℃) |
Fluctuating degree of temperature (℃) |
Volume of inner container (mm) | Volume of inner | Size of opening (mm) | Depth (mm) |
Pump flux (L/min) |
| THD-05 | 0～100 | ±0.05 | 260×170×120 | 6 L | 150×150 | 150 | 6 |
| THD-0506 | -5～100 | ±0.05 | 250×200×150 | 7.5 L | 180×150 | 150 | 6 |
| THD-0515 | -5～100 | ±0.05 | 300×250×200 | 15 L | 235×180 | 220 | 6 |
| THD-0530 | -5～100 | ±0.05 | 400×325×230 | 30 L | 310×280 | 230 | 13 |
| THD-1006 | -10～100 | ±0.05 | 250×200×150 | 7.5 L | 180×150 | 150 | 6 |
| THD-2006 | -20～100 | ±0.05 | 250×200×150 | 7.5 L | 180×150 | 150 | 6 |
| THD-2015 | -20～100 | ±0.05 | 300×250×200 | 15 L | 235×180 | 200 | 6 |
| THD-2030 | -20～100 | ±0.05 | 400×325×230 | 30 L | 310×280 | 230 | 13 |
| THD-3006 | -30～100 | ±0.1 | 250×200×120 | 6 L | 180×150 | 120 | 6 |
| THD-3010 | -30～100 | ±0.1 | 250×200×200 | 10 L | 180×150 | 200 | 6 |
| THD-3015 | -30～100 | ±0.1 | 300×250×200 | 15 L | 235×180 | 200 | 6 |
| THD-3030 | -30～100 | ±0.1 | 400×325×230 | 30 L | 310×280 | 230 | 13 |
| THD-4006 | -40～100 | ±0.1 | 250×200×120 | 6 L | 180×150 | 120 | 6 |
| THD-08W | 0～100 | ±0.05 | 290×180×150 | 8 L | 155×155 | 150 | 6 |
| THD-1008W | -10～100 | ±0.05 | 290×180×150 | 8 L | 155×155 | 150 | 6 |
| THD-2008W | -21～100 | ±0.05 | 280×250×130 | 9 L | 235×180 | 130 | 6 |
| THD-1015W | -10～100 | ±0.05 | 300×250×200 | 15 L | 235×180 | 200 | 6 |
