Description

Caltech India offers Through Coating Ultrasonic Thickness Gauge. Multi-mode Ultrasonic Thickness Gauge MT-600 with through coating Pulse-Echo mode (P-E mode) and Echo-Echo mode (E-E mode) two modes width measuring instrument.

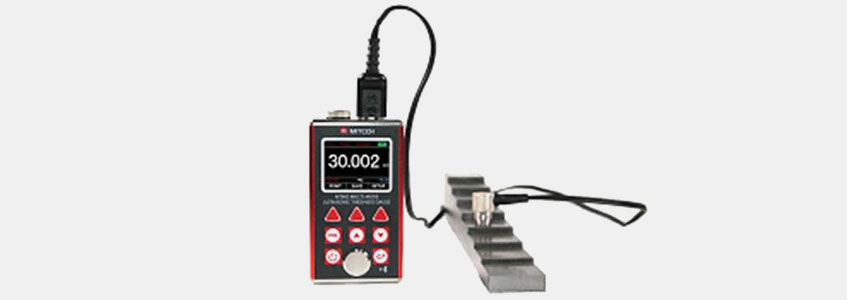

The model MT- 600 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters. The Multi-mode feature of the gauge allows the user to toggle between pulse-echo mode (flow and pit detection), and echo-echo mode (eliminate paint or coating thickness)

Model MT-600 Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Transducer models are available for special application, including for coarse grain material and high temperature applications.

Multi-mode: Pulse-Echo mode (P-E mode) and Echo-Echo mode (E-E mode). In Echo-Echo mode, it can test the wall thickness eliminating paint or coating thickness. Wide measuring range：Pulse-Echo mode: (0.65～600)mm (in Steel). Echo-Echo mode: (2.5～100)mm V-Path correction to compensate the nonlinearity of the probe. It has function for online transfer of the measured data to PC via USB.

Multi-mode Ultrasonic thickness gauge adopts the theory of sound wave to measure a wide range of material, such as metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials. Main functions are given below:

Main Technical Parameters:

Model	MT-600
Display	320×240 TFT color LCD screen, adjustable backlight brightness
Measuring Range	Two Working Modes:  Pulse-Echo mode: (0.65～600)mm (in Steel). Echo-Echo mode: (2.5～100)mm
Sound Velocity Range	1000~9999 m/s
Resolution	0.1mm/0.01mm/0.001mm switchable
Accuracy	±(0.04mm (≤10mm): ±0.4%H(>10mm)
Units	Metric / English unit selectable
Communication	Support Bluetooth and USB2.0 communication, the host program can be uploaded online
Memory	Memory upto 100 files (upto 100 values for each file) of stored value
Power Supply	Two “AA” size, 1.5 volt alkaline batteries. 100 hours typical operating time (EL backlight off)
Dimension	150 x 76 x 38 mm
Net Weight	295 g

Ordering Information:

MT-600

Through Coating Ultrasonic Thickness Gauge
